2022.02.22(42일 차)



로그인 기능은 무조건 Session을 써야 한다.



여러 개의 데이터를 넣을 때는 클래스에 넣어서  Session에 올리면 된다.



가상 주소 : join

실제주소 : member

오늘의 수업 내용





오늘은 로그인 & 회원가입 페이지를 만들 예정입니다.





1. DB 생성하기 - (MEMBER)

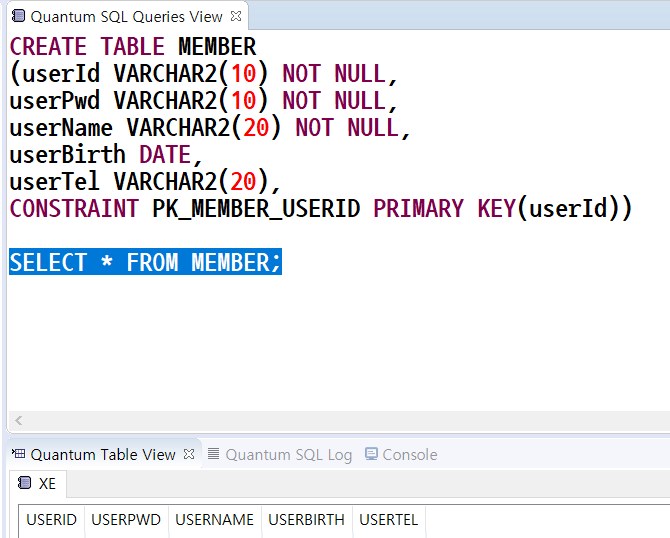

member 테이블 생성
member 테이블 생성

userId를 Primary Key로 정해서 위의 방법대로 member 테이블을 생성합니다.



2. web.xml 등록

<!-- Servlet 회원가입 -->
  <servlet>
  	<servlet-name>memberServlet</servlet-name>
  	<servlet-class>com.join.MemberServlet</servlet-class>
  </servlet>

  <servlet-mapping>
  	<servlet-name>memberServlet</servlet-name>
  	<url-pattern>/join/*</url-pattern>
  </servlet-mapping>





3. MemberDTO, MemberDAO 생성하기



패키지 생성
패키지 생성

com.join패키지를 만들고 안에 DAO, DTO를 생성합니다. 여기에 Servlet 클래스도 만들어서 넣을 예정입니다.



MemberDTO

package com.join;

public class MemberDTO {

	private String userId;
	private String userPwd;
	private String userName;
	private String userBirth; //애는 DATE로 만들어서 반드시 날짜를 넣어줘야한다.
	private String userTel;

	//getter/setter 생성

}



MemberDAO

package com.join;

import java.sql.Connection;
import java.sql.PreparedStatement;
import java.sql.ResultSet;

public class MemberDAO {

	private Connection conn;

	public MemberDAO(Connection conn) {

		this.conn = conn;
	}


	//회원가입
	public int sertData(MemberDTO dto) {

		int result = 0;

		PreparedStatement pstmt = null;
		String sql;

		try {
			//이 sql문을 가지고
			sql = "insert into member (userId,userPwd,userName,";
			sql +="userBirth,userTel) values (?,?,?,?,?)";

			//여기서 컬럼명이 맞는 검증
			pstmt = conn.prepareStatement(sql);

			//완벽한 insert 문
			pstmt.setString(1, dto.getUserId());
			pstmt.setString(2, dto.getUserPwd());
			pstmt.setString(3, dto.getUserName());
			pstmt.setString(4, dto.getUserBirth());
			pstmt.setString(5, dto.getUserTel());

			//DB에 가서 실행해라
			result = pstmt.executeUpdate();

			//DB사용했으면 닫아준다.
			pstmt.close();

		} catch (Exception e) {
			System.out.println(e.toString());
		}

		return result;

	}


	//데이터 읽어오기(읽기) - 하나의 데이터만 읽으면 된다(로그인할 때)
	public MemberDTO getReadData(String userId) {

		MemberDTO dto = null;

		PreparedStatement pstmt = null;
		ResultSet rs = null;
		String sql;

		try {

			//userId로 select 해온다.
			sql = "select userId,userPwd,userName,userBirth,";
			sql+= "userTel from member where userId=?";

			pstmt = conn.prepareStatement(sql);

			pstmt.setString(1, userId);

			rs = pstmt.executeQuery();

			//if문 안에들어왔다는 것은 데이터가 있다는 뜻
			if(rs.next()) {

				dto = new MemberDTO();

				dto.setUserId(rs.getString("userId"));
				dto.setUserPwd(rs.getString("userPwd"));
				dto.setUserName(rs.getString("userName"));
				dto.setUserBirth(rs.getString("userBirth"));
				dto.setUserTel(rs.getString("userTel"));

			}

			//dto에 데이터를 넣었으니 닫아준다
			rs.close();
			pstmt.close();

		} catch (Exception e) {
			System.out.println(e.toString());
		}

		return dto;

	}


}
4. Servlet 클래스 생성 - MemberServlet.java
   - 회원가입 시 포워드(forward) 페이지 호출



package com.join;

import java.io.IOException;

import javax.servlet.RequestDispatcher;
import javax.servlet.ServletException;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

public class MemberServlet extends HttpServlet{

	private static final long serialVersionUID = 1L;

	@Override
	protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {

		doPost(req, resp);
	}

	protected void forward(HttpServletRequest req, HttpServletResponse resp, String url) throws ServletException, IOException {

		RequestDispatcher rd = req.getRequestDispatcher(url);
		rd.forward(req, resp);

	}


	@Override
	protected void doPost(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {

	}

}



JSP 페이지 작성



created.jsp

<%@ page contentType="text/html; charset=UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<%
	request.setCharacterEncoding("UTF-8");
	String cp = request.getContextPath();
%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>회원가입</title>

<link rel="stylesheet" type="text/css" href="<%=cp%>/member/css/style.css">
<link rel="stylesheet" type="text/css" href="<%=cp%>/member/css/created.css">

<script type="text/javascript" src="<%=cp%>/member/js/util.js"></script>

<script type="text/javascript">

	function sendIt() {


		var f = document.myForm;

		str = f.userId.value;
		str = str.trim();
		if(!str) {
			alert("아이디를 입력하세용!");
			f.userId.focus();
			return;
		}
		f.userId.value = str;

		str = f.userPwd.value;
		str = str.trim();
		if(!str) {
			alert("패스워드를 입력하세용!");
			f.userPwd.focus();
			return;
		}
		f.userPwd.value = str;


		f.action = "<%=cp%>/join/created_ok.do";
		f.submit();

	}

</script>

</head>
<body>

<div id="bbs">
	<div id="bbs_title">
	회원가입
	</div>

	<form action="" method="post" name="myForm">
	<div id="bbsCreated">

		<div class="bbsCreated_bottomLine">
			<dl>
				<dt>아&nbsp;이&nbsp;디</dt>
				<dd>
				<input type="text" name="userId" size="35" maxlength="20"
				class="boxTF">
				</dd>
			</dl>
		</div>

		<div class="bbsCreated_bottomLine">
			<dl>
				<dt>패스워드</dt>
				<dd>
				<input type="text" name="userPwd" size="35" maxlength="20"
				class="boxTF">
				</dd>
			</dl>
		</div>

		<div class="bbsCreated_bottomLine">
			<dl>
				<dt>이&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;름</dt>
				<dd>
				<input type="text" name="userName" size="35"
				maxlength="50"class="boxTF">
				</dd>
			</dl>
		</div>

		<div class="bbsCreated_bottomLine">
			<dl>
				<dt>생&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;일</dt>
				<dd>
				<input type="text" name="userBirth" size="35"
				maxlength="50"class="boxTF">
				</dd>
			</dl>
		</div>

		<div class="bbsCreated_bottomLine">
			<dl>
				<dt>전&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;화</dt>
				<dd>
				<input type="text" name="userTel" size="35"
				maxlength="50"class="boxTF">
				</dd>
			</dl>
		</div>

	</div>

	<div id="bbsCreated_footer">
		<input type="button" value=" 가입하기 " class="btn2"
		onclick="sendIt();"/>

		<input type="reset" value=" 다시입력 " class="btn2"
		onclick="document.myForm.userId.focus();"/>

		<input type="button" value=" 가입취소 " class="btn2"
		onclick="javascript:location.href='<%=cp%>'"/>

	</div>

	</form>

</div>

</body>
</html>



login.jsp

<%@ page contentType="text/html; charset=UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<%
	request.setCharacterEncoding("UTF-8");
	String cp = request.getContextPath();
%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>로그인</title>

<link rel="stylesheet" type="text/css" href="<%=cp %>/member/css/style.css" >

<script type="text/javascript">

	function login() {

		var f = document.myForm;

		if(!f.userId.value) {

			alert("아이디를 입력하세요.");
			f.userId.focus();
			return;
		}

		if(!f.userPwd.value) {

			alert("패스워드를 입력하세요.");
			f.userPwd.focus();
			return;
		}

		f.action = "<%=cp%>/join/login_ok.do";
		f.submit();

	}

</script>

</head>
<body>

<br/><br/>
<center>
<form action="" method="post" name="myForm">

<table align="center" cellpadding="0" cellspacing="0">

<tr height="2"><td colspan="2" bgcolor="#cccccc"></td></tr>

<tr height="30">
	<td colspan="2" align="center">
	<b>로그인</b>
	</td>
</tr>

<tr height="2"><td colspan="2" bgcolor="#cccccc"></td></tr>

<tr height="25">
	<td width="80" bgcolor="#e6e4e6" align="center">아이디</td>
	<td width="120" style="padding-left: 5px;">
	<input type="text" name="userId" maxlength="10" size="15"/>
	</td>
</tr>

<tr height="25">
	<td width="80" bgcolor="#e6e4e6" align="center">패스워드</td>
	<td width="120" style="padding-left: 5px;">
	<input type="password" name="userPwd" maxlength="10" size="15"/>
	</td>
</tr>

<tr height="2"><td colspan="2" bgcolor="#cccccc"></td></tr>

<tr height="30">
	<td colspan="2" align="center">
	<input type="button" value="로그인" class="btn2" onclick="login();">
	<input type="button" value="취소" class="btm2"
	onclick="javascript:location.href='<%=cp%>/'">
	<input type="button" value=" 회원가입 " class="btm2"
	onclick="javascript:location.href='<%=cp%>/join/created.do';">
	</td>
</tr>

<tr height="30">
	<td colspan="2" align="center">
	<font color="red"><b>${message }</b></font>  <!-- el로 받았으니까 서블릿에서 받아올것이다 -->
	<font color="red"><b>${message2 }</b></font>
	<font color="red"><b>${message3 }</b></font>
	</td>
</tr>

<!-- 비밀번호 찾기 만들기 -->
<tr height="2" ><td colspan="2"  bgcolor="#cccccc"></td></tr>

<tr height="30">
	<td colspan="2" align="center">
	<a href="javascript:location.href='<%=cp %>/join/searchpw.do';">비밀번호 찾기</a>
	</td>
</tr>

<tr height="2"><td colspan="2" bgcolor="#cccccc"></td></tr>


</table>

</form>

</body>
</html>



searchpw.jsp

<%@ page contentType="text/html; charset=UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<%
	request.setCharacterEncoding("UTF-8");
	String cp = request.getContextPath();
%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>비밀번호찾기</title>

<link rel="stylesheet" type="text/css"href="<%=cp%>/member/css/style.css" />
<link rel="stylesheet" type="text/css"href="<%=cp%>/member/css/created.css" />

<script type="text/javascript">
	function sendIt(){

		var f = document.myForm;
		if(!f.userId.value){
			alert("아이디를 입력하세요!");
			f.userId.focus();
			return;
		}
		if(!f.userTel.value){
			alert("패스워드를 입력하세요!");
			f.userTel.focus();
			return;
		}
		f.action = "<%=cp %>/join/searchpw_ok.do";
		f.submit();
	}
</script>
</head>
<body>

<br/><br/>

<form action="" method="post" name="myForm">


<table align="center" cellpadding="0" cellspacing="0">
<tr height="2"><td colspan="2" bgcolor="#cccccc"></tr>
<tr height="30">
	<td colspan="2" align="center">
	<b>비밀번호 찾기</b>
	</td>
</tr>

<tr height="2"><td colspan="2" bgcolor="#cccccc"></tr>

<tr height="25">
	<td width="80" bgcolor="#e6e4e6" align="center">아이디</td>
	<td width="120" style="padding-left: 5px;">
	<input type="text" name="userId" maxlength="10" size="15"/>
	</td>
</tr>

<tr height="2"><td colspan="2" bgcolor="#cccccc"></tr>

<tr height="25">
	<td width="80" bgcolor="#e6e4e6" align="center">전화번호</td>
	<td width="120" style="padding-left: 5px;">
		<input type="text" name="userTel" maxlength="13" size="15"/>
	</td>
</tr>

<tr height="2"><td colspan="2" bgcolor="#cccccc"></tr>

<tr height="30">
	<td colspan="2" align="center">
	<input type="button" value="확인" class="btn2" onclick="sendIt();">
	<input type="button" value="취소" class="btn2"
	onclick="javascript:location.href='<%=cp %>/join/login.do';">
	</td>
</tr>

<tr height="30">
	<td colspan="2" align="center">
	<font color="red"><b>${message }</b></font>
	</td>
</tr>

<c:choose>
	<c:when test="${!empty message}">
	<tr height="1"><td colspan="2" bgcolor="#cccccc"></tr>
	<tr><td align="center" colspan="2">
	<a href="<%=cp %>/join/searchpw.do;">비밀번호 찾기</a>
	</td></tr>
	<tr height="1"><td colspan="2" bgcolor="#cccccc"></tr>
	</c:when>
</c:choose>
</table>

</form>

</body>
</html>



updated.jsp

<%@ page contentType="text/html; charset=UTF-8"%>
<%
	request.setCharacterEncoding("UTF-8");
	String cp = request.getContextPath();
%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>회원수정</title>

<link rel="stylesheet" type="text/css"href="<%=cp%>/member/css/style.css" />
<link rel="stylesheet" type="text/css"href="<%=cp%>/member/css/created.css" />

<script type="text/javascript" src="<%=cp%>/member/js/util.js"></script>
<script type="text/javascript">

	function sendIt(){

		var f = document.myForm;

		str = f.userPwd.value;
		if(!str){
			alert("패스워드를 입력하세요");
			f.userPwd.focus();
			return;
		}

		f.userPwd.value = str;

		str = f.userBirth.value;
		if(!str){
			alert("생년월일을 입력하세요");
			f.userBirth.focus();
			return;
		}

		f.userBirth.value = str;

		str = f.userTel.value;
		if(!str){
		alert("연락처를 입력하세요");
			f.userTel.focus();
			return;
		}

		f.userTel.value = str;

		f.action = "<%=cp%>/join/updated_ok.do";
		f.submit();

	}

</script>

</head>
<body>

	<div id="bbs">
		<div id="bbs_title">회원수정</div>
		<form action="" method="post" name="myForm">

			<div id="bbsCreated">
				<div class="bbsCreated_bottomLine">
					<dl>
						<dt>아&nbsp;이&nbsp;디</dt>
						<dd>
						${dto.userId }
						</dd>
					</dl>
				</div>

				<div class="bbsCreated_bottomLine">
					<dl>
						<dt>이&nbsp;&nbsp;&nbsp;&nbsp;름</dt>
						<dd>
						${dto.userName }
						</dd>
					</dl>
				</div>

				<div class="bbsCreated_bottomLine">
					<dl>
						<dt>패스워드</dt>
						<dd>
							<input type="text" name="userPwd" size="35" maxlength="20"
								value="${dto.userPwd }" class="boxTF" />
						</dd>
					</dl>
				</div>

				<div class="bbsCreated_bottomLine">
					<dl>
						<dt>
						생&nbsp;&nbsp;&nbsp;&nbsp;일
						</dt>
						<dd>
							<input type="text" name="userBirth" size="35" maxlength="50"
								value="${dto.userBirth }" class="boxTF" /><b>[YYYY-MM-DD]</b>
						</dd>
					</dl>
				</div>

				<div class="bbsCreated_bottomLine">
					<dl>
						<dt>
						전&nbsp;&nbsp;&nbsp;&nbsp;화
						</dt>
						<dd>
							<input type="text" name="userTel" size="35" maxlength="50"
								value="${dto.userTel }" class="boxTF" />
						</dd>
					</dl>
				</div>

			</div>

			<div id="bbsCreated_footer">
				<input type="button" value="수정하기" class="btn2" onclick="sendIt()" />
				<input type="button" value="수정취소" class="btn2"
					onclick="javascript:location.href='<%=cp %>';" />
			</div>
		</form>

	</div>
</body>
</html>





index.jsp

<%@page import="com.join.CustomInfo"%>
<%@ page contentType="text/html; charset=UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<%
	request.setCharacterEncoding("UTF-8");
	String cp = request.getContextPath();

	//이건 JSP에서 썻던 방법 우리는 EL로 할 것이다
	//CustomInfo info = (CustomInfo)session.getAttribute("customInfo");
%>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>JSP/Servlet 게시판 목록</title>

</head>
<body>

<c:choose>
	<c:when test="${empty sessionScope.customInfo.userId }">
		<b>로그인하면 새로운 세상이 보입니다.</b><br/><br/>
	</c:when>
	<c:otherwise>
		${sessionScope.customInfo.userName }님 방가방가..<br/><br/>
	</c:otherwise>
</c:choose>


<c:choose>
	<c:when test="${empty sessionScope.customInfo.userId }">
	1. 성적처리(JSP)<br/>
	2. 게시판(JSP)<br/>
	3. 방명록(JSP)<br/>
	4. 성적처리(Servlet)<br/>
	</c:when>
	<c:otherwise>
		1. <a href="<%=cp%>/score/list.jsp">성적처리(JSP)</a><br/>
		2. <a href="<%=cp%>/board/list.jsp">게시판(JSP)</a><br/>
		3. <a href="<%=cp%>/guest/guest.jsp">방명록(JSP)</a><br/>
		4. <a href="<%=cp%>/jumsu/list.do">성적처리(Servlet)</a><br/>
	</c:otherwise>
</c:choose>

		5. <a href="<%=cp%>/sboard/list.do">게시판(Servlet)</a><br/>
		<br/><br/>

<c:choose>
	<c:when test="${empty sessionScope.customInfo.userId }">
		<a href="<%=cp %>/join/created.do">회원가입</a><br/>
		<a href="<%=cp %>/join/login.do">로그인</a><br/>
	</c:when>
	<c:otherwise>
		<a href="<%=cp %>/join/updated.do">정보수정</a><br/>
		<a href="<%=cp %>/join/logout.do">로그아웃</a><br/>
	</c:otherwise>
</c:choose>

<%-- ${name } --%>


</body>
</html>

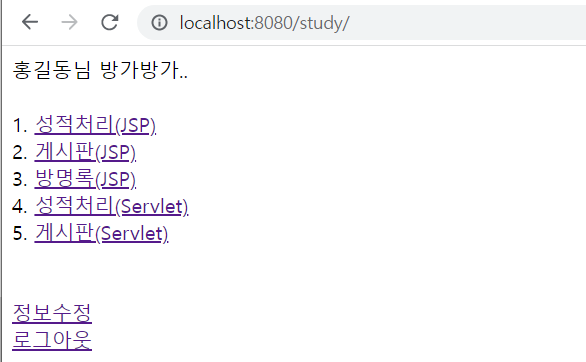

로그인 성공 메인 화면

로그인 성공 시 지금까지 만들었던 JSP & Servlet 게시판으로 갈 수 있는 링크가 보이게 된다.

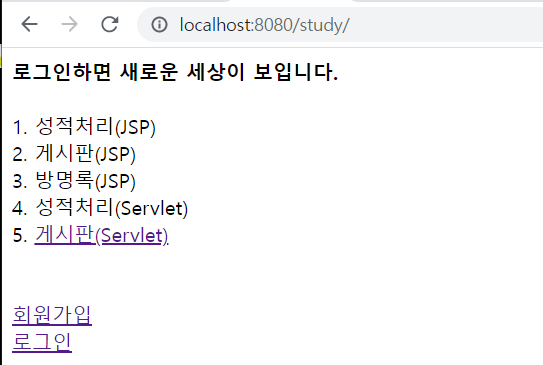

로그인 전 메인 화면
로그인 전 메인 화면

로그인하기 전에는 5번 게시판만 링크 이동이 가능하다.

반응형
저작자표시 비영리

'Back-End > JSP & Struts & JDBC' 카테고리의 다른 글

[Servlet] 쿠키(cookie), 파일 업로드(1) - 파일 등록 및 조회, 파일 업로드(2) - 파일 업로드, 다운로드, 삭제  (0) 2022.02.24
[JSP & Servlet] 핵심&필수 개념 정리 - (복습)  (0) 2022.02.23
[Servlet] 성적 처리 리스트  (0) 2022.02.22
[Servlet] 게시판  (0) 2022.02.21
[Servlet] 서블릿 구조, EL, JSTl  (0) 2022.02.18

블로그의 정보

무작정 개발

무작정 개발

활동하기

티스토리툴바
